Nonlinear Dynamic Contact Analysis¶
This analysis uses the data in tutorial/14_dynamic_plate_contact.
Analysis Model¶
The analysis models the impact of a square bar falling onto a floor. Figure 4.14.1 shows the geometry, and Figure 4.14.2 shows the mesh data.
| Item | Description | Notes | Reference |
|---|---|---|---|
| Analysis type | Nonlinear dynamic contact analysis | !SOLUTION,TYPE=DYNAMIC !DYNAMIC,TYPE=NONLINEAR !CONTACT | |
| Number of nodes | 10,712 | ||
| Number of elements | 8,232 | ||
| Element type | 8-node hexahedral element | !ELEMENT,TYPE=361 | |
| Material names | M1, M2 | !MATERIAL,NAME=M1 !MATERIAL,NAME=M2 | |
| Material properties | ELASTIC, PLASTIC | !ELASTIC !PLASTIC | |
| Boundary conditions | Constraints, initial velocity | !VELOCITY,TYPE=INITIAL | |
| Linear solver | Direct method | !SOLVER,METHOD=MUMPS |
Fig. 4.14.1 Geometry of the floor and square bar

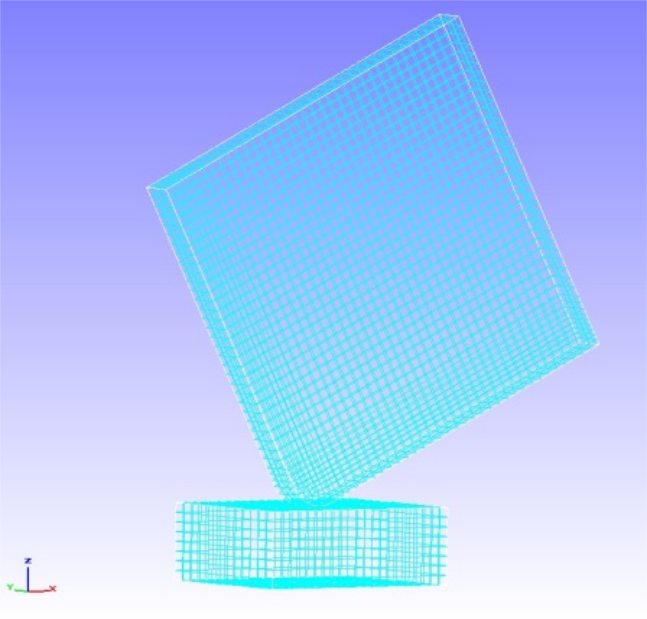

Fig. 4.14.2 Mesh data of the floor and square bar
Analysis Description¶
An initial velocity of 4427 mm/s is assigned to the square bar, and a dynamic contact analysis is performed. The analysis control data are shown below.
Analysis Control Data plateToGround.cnt¶
!!
!! Control File for FISTR
!!
!VERSION
3
!WRITE,LOG,FREQUENCY=10
!WRITE,RESULT,FREQUENCY=10
!SOLUTION, TYPE=DYNAMIC
!DYNAMIC, TYPE=NONLINEAR
1 , 1
0.0, 1.0, 200, 1.0000e-8
0.65, 0.330625
1, 1, 0.0, 0.0
20, 2621, 1
1, 1, 1, 1, 1, 1
!BOUNDARY, GRPID = 1
bottom, 1, 3, 0.0
!VELOCITY, TYPE = INITIAL
plate, 3, 3, -4427.0
!CONTACT_ALGO, TYPE=SLAGRANGE
!CONTACT, GRPID=1, INTERACTION=FSLID
CP1, 0.0, 1.0e+5
!STEP, CONVERG=1.0e-8, ITMAX=100
BOUNDARY, 1
CONTACT, 1
!MATERIAL, NAME = M1
!ELASTIC
2.00000e+5, 0.3
!PLASTIC
1.0e+8, 0.0
!MATERIAL, NAME = M2
!ELASTIC
1.16992e+5, 0.3
!PLASTIC
70.0, 0.0
!SOLVER,METHOD=MUMPS
!END
Analysis Results¶
Figure 4.14.3 shows a contour plot of von Mises stress during the impact. As numerical analysis results, an excerpt from the energy output file (dyna_energy.txt) for the monitoring node is shown below.

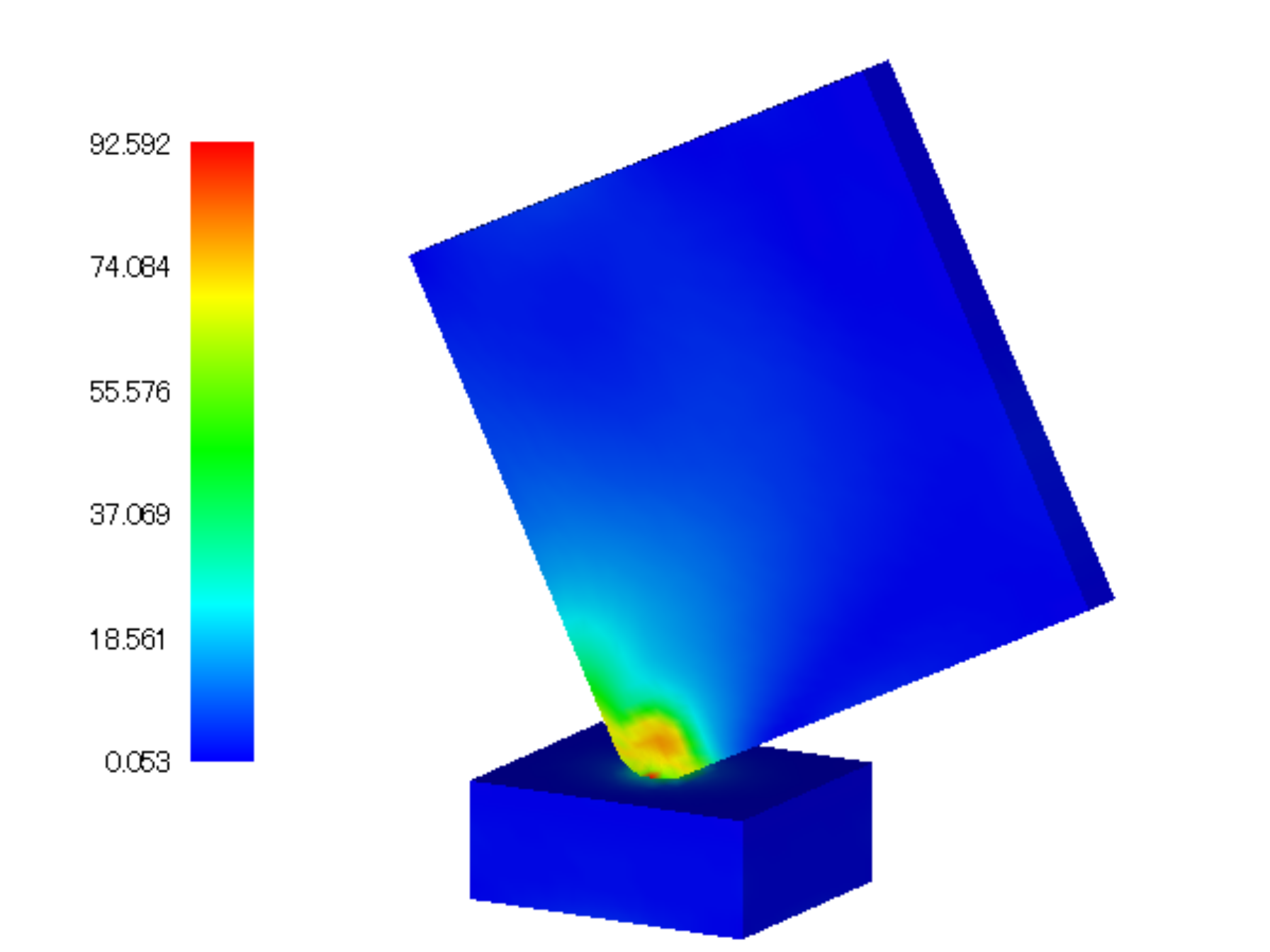

Fig. 4.14.3 Von Mises stress during impact
Energy of the Monitoring Node dyna_energey.txt¶
